Pwodwi Deskripsyon
Tib kabòn se yon materyèl pèfòmans segondè -, ki gen avantaj ki genyen nan lejè, gwo fòs, ak rezistans korozyon, epi li se lajman ki itilize nan otomobil, aviyasyon, ekipman espò, ak lòt jaden. Souvan itilize tib kabòn gen dyamèt ant 10 ak 80 mm, longè maksimòm ant 10 mèt, ak epesè ant 0.5 ak 5 mm. Tipik kabòn asye tiyo materyèl klas nan API 5L Klas B, X42 X70, ASTM A106 B, ASTM A53 B, ASTM A252 Klas 3 ak ASTM A333 Klas 6 elatriye.
Non pwodwi:tiyo san pwoblèm, tiyo asye san pwoblèm, tiyo asye kabòn san pwoblèm, kabòn tiyo asye san pwoblèm, tiyo liy san pwoblèm
Aplikasyon:Pou konvèti gaz, dlo ak lwil pou transmisyon likid
Gwosè:OD: 10.3-1219.2mm
WT: 1.65-60mm
Longè: 5.8/6/11.8/12m
Sifas:wile oswa unoiled
Fini:Fen plenn, bizote ak bouchon tib
Pake:pa pake oswa esansyèl
Estanda ak klas:API 5L /ASTM A106, Klas B; ASTM A53, Gr.A, Gr.B; DN 17175/EN10216-2, klas ST35, ST45, ST52, 13CRMO44; DIN 2391/EN10305-1, klas ST35, ST45, ST52; DIN 1629/EN10216-1, klas ST37, ST45, ST52; JIS G3429 STH11; JIS G3429 STH12; JIS G3429 STH21; JIS G3429 STH22
Pwodwi spesifikasyon
Kabòn asye tiyo estanda ak klas yo
ASTM A106 Gr. B Nan san pwoblèm (diferans ki genyen ant ASTM A106 ak A53 tiyo)
ASTM A53 Gr. A, B nan san pwoblèm, soude ERW, ak zenk kouvwi, cho - tranpe l 'tiyo asye galvanised
ASTM A179 Gr. C nan san pwoblèm (pou san pwoblèm frèt trase ki ba kabòn asye chalè - echanjeur ak kondansateur tib)
ASTM A192 (pou tib chofaj asye kabòn san pwoblèm pou segondè - sèvis presyon)
ASTM A252 (pou pil tiyo soude ak san pwoblèm asye)
ASTM A333 Gr . 1, 2, 3, 4, 5, 6 (pou tiyo asye san pwoblèm ak soude pou sèvis tanperati ki ba - ak lòt aplikasyon ak rezistans Notch obligatwa)
ASTM A134 ak ASTM A135 (pou rezistans elektrik soude ERW tiyo asye)
API 5L tiyo, ISO 3183 / API 5L Gr. A, B, x42, x46, x52, x56, x60, x65, x70, x80 nan san pwoblèm ak soude (LSAW, SSAW, ERW) tiyo asye, pou petwòl ak endistri gaz natirèl, tiyo asye pou sistèm transpò tiyo.
DIN 2440 tiyo asye san pwoblèm ak soude aplike nan mwayen - tib pwa apwopriye pou vise. (Din2444 Zenk kouvwi tib asye, pou galvanize cho)
CSZ Z245 san pwoblèm ak ERW soude tiyo (Low - Frekans elektrik soude tiyo eskli), wè tiyo asye ki gen entansyon pou lwil oliv ak gaz sistèm tiyo.
Nbr 8261 frèt - trase, frèt - fòm, tiyo asye soude, nan kwa sikilè - seksyon, kare oswa rektangilè, aplike nan rezon estriktirèl.
Awwa C-200 pou tiyo dlo asye
Plis estanda materyèl ki disponib nan ka egzijans espesyal
CS konpozisyon chimik tiyo ak pwopriyete mekanik
|
estanda |
Egalize |
Eleman chimik (%) |
Pwopriyete mekanik |
|||||
|
C |
Si |
Mn |
P |
S |
Fòs rupture (MPa) |
Sede fòs (MPa) |
||
|
ASTM A53 |
A |
Mwens pase oswa egal a 0.25 |
- |
Mwens pase oswa egal a 0.95 |
Mwens pase oswa egal a 0.05 |
Mwens pase oswa egal a 0.06 |
Pi gran pase oswa egal a 330 |
Pi gran pase oswa egal a 205 |
|
B |
Mwens pase oswa egal a 0.30 |
- |
Mwens pase oswa egal a 1.2 |
Mwens pase oswa egal a 0.05 |
Mwens pase oswa egal a 0.06 |
Pi gran pase oswa egal a 415 |
Pi gran pase oswa egal a 240 |
|
|
ASTM A106 |
A |
Mwens pase oswa egal a 0.30 |
Pi gran pase oswa egal a 0.10 |
0.29-1.06 |
Mwens pase oswa egal a 0.035 |
Mwens pase oswa egal a 0.035 |
Pi gran pase oswa egal a 415 |
Pi gran pase oswa egal a 240 |
|
B |
Mwens pase oswa egal a 0.35 |
Pi gran pase oswa egal a 0.10 |
0.29-1.06 |
Mwens pase oswa egal a 0.035 |
Mwens pase oswa egal a 0.035 |
Pi gran pase oswa egal a 485 |
Pi gran pase oswa egal a 275 |
|
|
ASTM A179 |
A179 |
0.06-0.18 |
- |
0.27-0.63 |
Mwens pase oswa egal a 0.035 |
Mwens pase oswa egal a 0.035 |
Pi gran pase oswa egal a 325 |
Pi gran pase oswa egal a 180 |
|
ASTM A192 |
A192 |
0.06-0.18 |
Mwens pase oswa egal a 0.25 |
0.27-0.63 |
Mwens pase oswa egal a 0.035 |
Mwens pase oswa egal a 0.035 |
Pi gran pase oswa egal a 325 |
Pi gran pase oswa egal a 180 |
|
API 5L PSL1 |
A |
0.22 |
- |
0.9 |
0.03 |
0.03 |
Pi gran pase oswa egal a 331 |
Pi gran pase oswa egal a 207 |
|
B |
0.28 |
- |
1.2 |
0.03 |
0.03 |
Pi gran pase oswa egal a 414 |
Pi gran pase oswa egal a 241 |
|
|
X42 |
0.28 |
- |
1.3 |
0.03 |
0.03 |
Pi gran pase oswa egal a 414 |
Pi gran pase oswa egal a 290 |
|
|
X46 |
0.28 |
- |
1.4 |
0.03 |
0.03 |
Pi gran pase oswa egal a 434 |
Pi gran pase oswa egal a 317 |
|
|
X52 |
0.28 |
- |
1.4 |
0.03 |
0.03 |
Pi gran pase oswa egal a 455 |
Pi gran pase oswa egal a 359 |
|
|
X56 |
0.28 |
- |
1.4 |
0.03 |
0.03 |
Pi gran pase oswa egal a 490 |
Pi gran pase oswa egal a 386 |
|
|
X60 |
0.28 |
- |
1.4 |
0.03 |
0.03 |
Pi gran pase oswa egal a 517 |
Pi gran pase oswa egal a 448 |
|
|
X65 |
0.28 |
- |
1.4 |
0.03 |
0.03 |
Pi gran pase oswa egal a 531 |
Pi gran pase oswa egal a 448 |
|
|
X70 |
0.28 |
- |
1.4 |
0.03 |
0.03 |
Pi gran pase oswa egal a 565 |
Pi gran pase oswa egal a 483 |
|
|
API 5L PSL2 |
B |
0.24 |
- |
1.2 |
0.025 |
0.015 |
Pi gran pase oswa egal a 414 |
Pi gran pase oswa egal a 241 |
|
X42 |
0.24 |
- |
1.3 |
0.025 |
0.015 |
Pi gran pase oswa egal a 414 |
Pi gran pase oswa egal a 290 |
|
|
X46 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 434 |
Pi gran pase oswa egal a 317 |
|
|
X52 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 455 |
Pi gran pase oswa egal a 359 |
|
|
X56 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 490 |
Pi gran pase oswa egal a 386 |
|
|
X60 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 517 |
Pi gran pase oswa egal a 414 |
|
|
X65 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 531 |
Pi gran pase oswa egal a 448 |
|
|
X70 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 565 |
Pi gran pase oswa egal a 483 |
|
|
X80 |
0.24 |
- |
1.4 |
0.025 |
0.015 |
Pi gran pase oswa egal a 621 |
Pi gran pase oswa egal a 552 |
|
Kabòn tiyo & tolerans tib
|
Kalite tiyo |
Gwosè tiyo (mm) |
Tolerans |
|
Cho woule |
Od<50 |
± 0.50mm |
|
OD pi gran pase oswa egal a 50 |
±1% |
|
|
Wt<4 |
±12.5% |
|
|
Wt 4-20 |
+15%, -12.5% |
|
|
WT>20 |
±12.5% |
|
|
Fwad trase |
OD 6-10 |
± 0.20mm |
|
OD 10-30 |
± 0.40mm |
|
|
OD 30-50 |
±0.45 |
|
|
OD>50 |
±1% |
|
|
Wt mwens pase oswa egal a 1 |
± 0.15mm |
|
|
Wt 1-3 |
+15%, -10% |
|
|
WT >3 |
+12.5%, -10% |
Kabòn aplikasyon tiyo san pwoblèm
|
Kalite |
Aplikasyon |
|
Rezon estrikti |
Estrikti jeneral ak mekanik |
|
Sèvis likid |
Petwòl, gaz ak lòt likid ki transmèt |
|
Low ak mwayen presyon chofaj tib |
Vapè ak fabrikasyon chofaj |
|
Sèvis poto idwolik |
Sipò idwolik |
|
Auto semi - aman arbr |
Auto Sem - Arbr aman |
|
Tiyo liy |
Lwil ak gaz transmèt |
|
Tib ak aman |
Lwil ak gaz transmèt |
|
Tiyo egzèsis |
Byen perçage |
|
Tiyo jewolojik perçage |
Jeyolojik perçage |
|
Tib founo, tib echanjeur chalè |
Tib founo, echanjeur chalè |
|
Tiyo dlo glase |
Vapè/kondansasyon tiyo |
Tiyo echanjeur chalè |
Marin/tiyo lanmè |
Tiyo dragaj |
Tiyo endistriyèl |
|
Lwil oliv ak tiyo gaz |
Ponpye tiyo batay |
Konstriksyon/estrikti tiyo |
Tiyo irigasyon |
Tiyo drenaj/dlo egou |
Tib chofaj |
Tab gwosè kabòn
| NP | O.D | ANSI B36.10 B36.19 epesè miray la | ||||||||||||||
| mm | nan | mm | Sch5s | Sch10s | Sch10 | Sch20 | Sch30 | Sch40s | Std | Sch40 | Sch60 | Sch80 | Xs | Sch80s | Sch100 | Xxs |
| 8 | 1/4 | 13.72 | - | 1.65 | - | - | - | 1.73 | 1.73 | 1.73 | - | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.14 | - | 1.65 | - | - | - | 2.31 | 2.31 | 2.31 | - | 3.2 | 3.2 | 3.2 | - | - |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | - | - | - | 2.77 | 2.77 | 2.77 | - | 3.73 | 3.73 | 3.73 | - | 7.47 |
| 20 | 3/4 | 26.67 | 1.65 | 2.11 | - | - | - | 2.87 | 2.87 | 2.87 | - | 3.91 | 3.91 | 3.91 | - | 7.82 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | - | - | - | 3.38 | 3.38 | 3.38 | - | 4.55 | 4.55 | 4.55 | - | 9.09 |
| 32 | 1 1/4 | 42.16 | 1.65 | 2.77 | - | - | - | 3.56 | 3.56 | 3.56 | - | 4.85 | 4.85 | 4.85 | - | 9.7 |
| 40 | 1 1/2 | 48.26 | 1.65 | 2.77 | - | - | - | 3.68 | 3.68 | 3.68 | - | 5.08 | 5.08 | 5.08 | - | 10.16 |
| 50 | 2 | 60.32 | 1.65 | 2.77 | - | - | - | 3.91 | 3.91 | 3.91 | - | 5.54 | 5.54 | 5.54 | - | 11.07 |
| 65 | 2 1/2 | 73.02 | 2.11 | 3.05 | - | - | - | 5.16 | 5.16 | 5.16 | - | 7.01 | 7.01 | 7.01 | - | 14.02 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | - | - | - | 5.49 | 5.49 | 5.49 | - | 7.62 | 7.62 | 7.62 | - | 15.24 |
| 90 | 31/2 | 101.6 | 2.11 | 3.05 | - | - | - | 5.74 | 5.74 | 5.74 | - | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.3 | 2.11 | 3.05 | - | - | - | 6.02 | 6.02 | 6.02 | - | 8.56 | 8.56 | 8.56 | - | 17.12 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | - | - | - | 6.55 | 6.55 | 6.55 | - | 9.53 | 9.53 | 9.53 | - | 19.05 |
| 150 | 6 | 168.28 | 2.77 | 3.4 | - | - | - | 7.11 | 7.11 | 7.11 | - | 10.97 | 10.97 | 10.97 | - | 21.94 |
| 200 | 8 | 219.08 | 2.77 | 3.4 | - | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 22.22 |
| 250 | 10 | 273.05 | 3.4 | 3.76 | - | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 25.4 |
| 300 | 12 | 323.85 | 3.96 | 4.57 | - | 6.35 | 8.38 | 9.52 | 9.52 | 10.3 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | - |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.52 | *9.52 | 9.52 | 11.13 | 15.09 | 12.7 | 12.7 | 19.05 | 23.83 | - |
| 400 | 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.52 | *9.52 | 9.52 | 12.7 | 16.66 | 12.7 | 12.7 | 21.44 | 26.19 | - |
| 450 | 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.12 | *9.52 | 9.52 | 14.27 | 19.05 | 12.7 | 12.7 | 23.82 | 29.36 | - |
| 500 | 20 | 508 | 4.78 | 5.54 | 6.35 | 7.92 | 12.7 | *9.52 | 9.52 | 15.09 | 20.62 | 12.7 | 12.7 | 26.19 | 32.54 | - |
| 550 | 22 | 558.8 | 4.78 | 5.54 | 6.35 | 7.92 | 12.7 | *9.52 | 9.52 | - | 22.22 | 12.7 | 12.7 | 28.58 | 34.92 | - |
| 600 | 24 | 609.6 | 5.54 | 6.35 | 6.35 | 7.92 | 14.27 | *9.52 | 9.52 | 17.48 | 24.61 | 12.7 | 12.7 | 30.96 | 38.89 | - |
| 650 | 26 | 660.4 | - | *7.92 | 7.92 | 12.7 | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 700 | 28 | 711.2 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 750 | 30 | 762 | 6.35 | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 800 | 32 | 812 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | 17.48 | - | 12.7 | 12.7 | - | - | - |
| 850 | 34 | 863.6 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | 17.48 | - | 12.7 | 12.7 | - | - | - |
| 900 | 36 | 914.4 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | 19.05 | - | 12.7 | 12.7 | - | - | - |
| 950 | 38 | 965.2 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 1000 | 40 | 1016 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 1050 | 42 | 1066.8 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 1100 | 44 | 1117.6 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 1150 | 46 | 1168.4 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 1200 | 48 | 1219.2 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
| 1300 | 52 | 1320.8 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | - |
| 1350 | 54 | 1371.6 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | - |
| 1400 | 56 | 1422.4 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | - |
| 1500 | 60 | 1524 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
| 1600 | 64 | 1625.6 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
| 1700 | 68 | 1727.2 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
| 1800 | 72 | 1828.8 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
| 1900 | 76 | 1930.4 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
| 2000 | 80 | 2032 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
Pwosesis pwodiksyon
Gnee kabòn smls tiyo pou vann

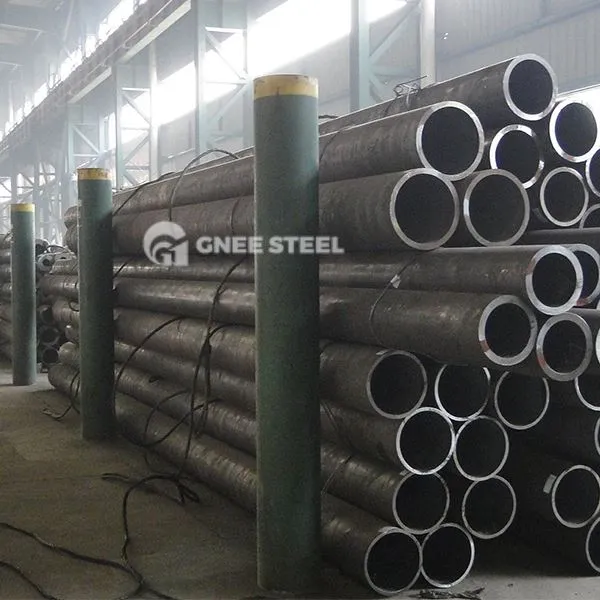

Baj popilè: ASTM A53 B ASTM A106 Gr. B ASTM A179 ASTM A192 ASTM A333 ak API 5L kabòn tiyo asye san pwoblèm, Lachin ASTM A53 B ASTM A106 GR. B ASTM A179 ASTM A192 ASTM A333 ak API 5L Kabòn san pwoblèm Steel tiyo manifaktirè, Swèd, faktori
