Pwodwi Deskripsyon
DIN 17175 ST35.8 Tib chodyè presyon wo -yo prensipalman itilize pou chofaj sifas tibnanchodyè presyon ba- ak mwayen-, ak kondisyon fonksyònman anjeneral nan presyon travay Mwens pase oswa egal a 5.88 MPaakTanperati mwens pase oswa egal a 450 degre.
Konpozisyon chimik:
Kabòn (C): Mwens pase oswa egal a 0.17%
Manganèz (Mn): 0.40–1.20%
Pwopriyete mekanik:
Fòs rupture: 360-480 MPa
Garanti gwo -Fòs Sede Tanperati
Kondisyon espesyal:
Tès idrostatik
Tès à
Pwodwi spesifikasyon
Estanda: Din
Materyèl: St35-St52
Fòm seksyon: wonn
Kote ki gen orijin: Lachin
Aplikasyon: Chodyè tiyo
Sètifikasyon: CE
Tolerans: ± 10%
Kategori: tiyo asye san pwoblèm
DIN17175 tiyo asye san pwoblèm konpozisyon chimik
|
Klas |
C |
Si |
Mn |
P |
S |
|
|
Non Steel |
Nimewo asye |
|
|
|
max |
max |
|
St35.8 |
1.0305 |
Mwens pase oswa egal a 0.17 |
0.10-0.35 |
0.40-0.80 |
0.040 |
0.040 |
|
St45.8 |
1.0405 |
Mwens pase oswa egal a 0.21 |
0.10-0.35 |
0.40-1.20 |
0.040 |
0.040 |
|
17Mn4 |
1.0481 |
0.14-0.20 |
0.20-0.40 |
0.90-1.20 |
0.040 |
0.040 |
|
19Mn5 |
1.0482 |
017-0.22 |
0.30-0.60 |
1.00-1.30 |
0.040 |
0.040 |
|
15Mo3 |
1.5415 |
0.12-0.20 |
0.10-0.35 |
0.40-0.80 |
0.035 |
0.035 |
|
13CrMo4 4 |
1.7335 |
0.10-0.18 |
0.10-0.35 |
0.40-0.70 |
0.035 |
0.035 |
|
10CrMo9 10 |
1.7380 |
0.08-0.15 |
Mwens pase oswa egal a 0.50 |
0.40-0.70 |
0.035 |
0.035 |
|
14MoV 6 3 |
1.7715 |
0.10-0.18 |
0.10-0.35 |
0.40-0.70 |
0.035 |
0.035 |
|
X20CrMnV12 1 |
1.4922 |
0.17-0.23 |
Mwens pase oswa egal a 0.50 |
Mwens pase oswa egal a 1.00 |
0.035 |
0.035 |
DIN17175 segondè tanperati chofaj tib Pwopriyete mekanik
|
Klas |
Fòs rupture |
Sede fòs (epesè) |
Elongasyon |
||||
|
Mwens pase oswa egal a 16 |
＞16 Mwens pase oswa egal a 40 |
＞40 Mwens pase oswa egal a 60 |
V |
H |
|||
|
Non Steel |
Nimewo asye |
Mpa |
min Mpa |
min % |
|||
|
St35.8 |
1.0305 |
360-480 |
235 |
225 |
215 |
25 |
23 |
|
St45.8 |
1.0405 |
410-530 |
255 |
245 |
235 |
21 |
19 |
|
17Mn4 |
1.0481 |
460-580 |
270 |
270 |
260 |
23 |
21 |
|
19Mn5 |
1.0482 |
510-610 |
310 |
310 |
300 |
19 |
17 |
|
15Mo3 |
1.5415 |
450-600 |
270 |
270 |
280 |
22 |
20 |
|
13CrMo4 4 |
1.7335 |
440-590 |
290 |
290 |
280 |
22 |
20 |
|
10CrMo9 10 |
1.7380 |
450-600 |
280 |
280 |
270 |
20 |
18 |
|
14MoV 6 3 |
1.7715 |
460-610 |
320 |
320 |
310 |
20 |
18 |
|
X20CrMnV12 1 |
1.4922 |
690-840 |
490 |
490 |
490 |
17 |
14 |
GNEE

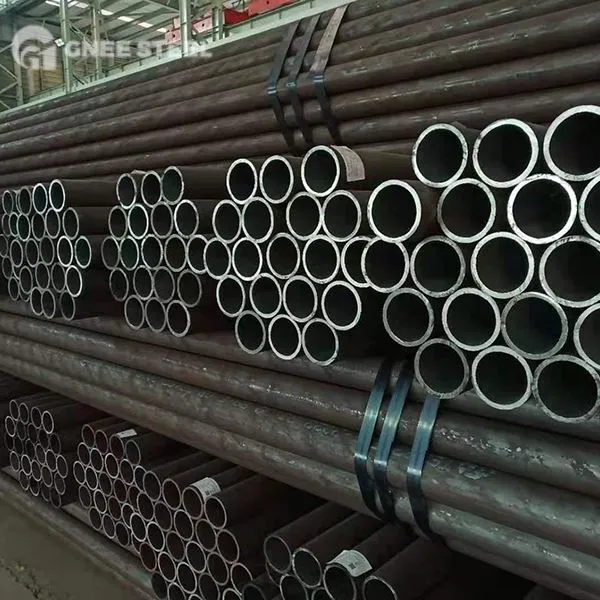

DIN 17175 St35.8 Tib asye san pwoblèm
